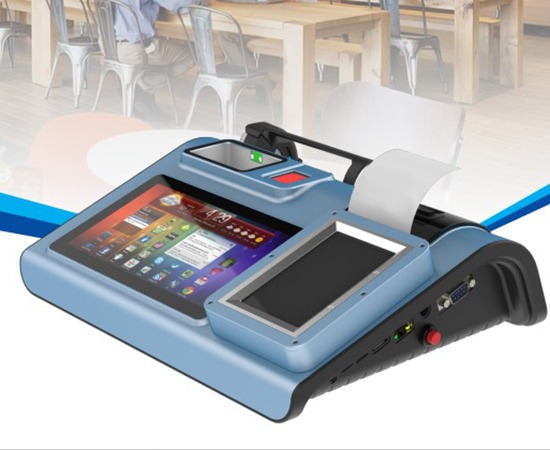

MTERMINAL 400 - BENCH-TOP TERMINAL DEVICE FOR ENROLLMENT
Integrated Biometrics’ revolutionary mTerminal 400 is FBI and STQC certified optical fingerprint scanner that delivers fast FAP 50 & FAP 10 to serve the purpose of enrollment and verification. The terminal is capable of capturing 4+2 image templates i.e. 4 fingerprints of each of the hand and 2 thumb impressions (of both the hands) of an individual. Additionally, the WiFi system, integrated thermal printer and Iris scanner makes mTerminal 400 smarter with the best ever battery backup of 10,000 mAH.
| Tablet |
| Features | Specification |
| Display | 7” Inches Scratch Resistant Multi Point Capacitive Touch Screen With WSVGA Resolution (1024 X 600) |
| Processor | 1 GHz Dual Core ARM Processor |
| RAM | 1 GB |
| Inbuilt Storage | 4 GB Flash Memory |
| Expansion Slot | Micro SD Slot Supporting up to 32 GB Memory Card |
| Audio | Good Quality Speaker – 1W Speaker |
| Connectivity | Dual 4G/3G/2G Micro SIM Slot, WiFi Interface & Bluetooth |
| GPS | Supports GPS and AGPS |
| USB Ports | Micro USB OTG as Debug Port, Additional USB2.0 Slave Port |
| Battery | Swappable & Rechargeable 10,000 mAH Li-Ion/Li-Polymer Battery |
| Camera | 5MP Auto-Focus Camera for Reading QR Code and 2D Barcode |
| Indicators | Status Indicator Provides Ease of Use. Indicators Are for Better Connectivity (Presence/Absence), Signal Strength, Battery Status etc. |
| SAM Slot | SAM Slot to Secure Loading of Applications |
| Certification | CE, RoHS, BIS13252 (Part 1) |
| Ethernet | 10/100 Mbps Supported RJ-45 Interface |
| Other Interface | RS232, Relay with Non-Potential Contacts |
| Operating System | Android |
| Power On/Off | External Power On/Off Button |
| DC Power | Separate DC Jack for Power Input |
| Power Adapter | Power Adapter with Surge Protection |
| IRIS Scanner |
| Features | Specification |
| Spatial Resolution | > 50% @ 1.0 LP/mm |
| Pixel Resolution | > 10 Pixels/mms |
| Image Margins Left & Right | >= 0.6x IRIS Radius |
| Top & Bottom | >= 0.2x IRIS Radius |
| Imaging Wavelength | 700-900 nm |
| Pixel Depth | 8 Bits/Pixel |
| Enrolment Slap Fingerprint Scanner |
| Features | Specification |
| Resolution | 500 PPI |
| Platen Size | 85.85mm x 53.97mm / 3.38” x 2.12” |
| Sensing Area | 81.28mm x 50.8mm / 3.2” x 2” (FAP 50) |
| Scanner Assembly Dimensions | 113.8mm x 83mm x 19mm | 4.48″ x 3.27″ x 0.75″ |
| Gray Scale | 256 Grayscale Dynamic Range |
| Image Size | 1600 (W) x 1000 (H) pixels |
| Supported Image Formats | RAW, JPEG2000, BMP, PNG, WSQ |
| FBI Certification / Image Certification | FBI Appendix F-certified, Mobile ID, IQS FAP50, PIV, GSA FIPS201 |
| Speed | Min Frame Rate Slaps > 7.7 FPS | Min Frame Rate Rolls >10 FPS |
| FAP | FAP50 |
| Verification Fingerprint Scanner |
| Features | Specification |
| Fingerprint Sensor | Optical (Scratch Free Sensor Surface) |
| Image Resolution | 500 DPI / 256 Gray |
| Sensing Area | 16 x 18 mm |
| FAP | FAP10 |
| Thermal Printer |
| Features | Specification |
| Printing Speed | 70mm/s |
| Effective Printing Width | 48mm |
| Style | Black and White |
