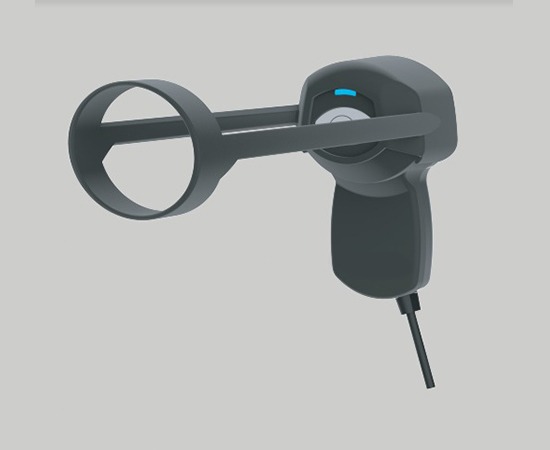

MIS100V2 - SINGLE IRIS SCANNER
MIS100V2 is high quality USB IRIS Sensor for IRIS Authentication to access desktop or network security. Single IRIS Sensor MIS100V2 can be used extensively for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.
The special features of MIS100V2 – Single IRIS Scanner include:
- Plug & Play USB 2.0 with High Speed Interface
- Lower FAR and FRR
- STQC Certified Product
- Supports Windows Operating Systems
- Supports Android Operating Systems
- Supports Linux Operating Systems
Applications
- PC/Network Security
- Time and Attendance
- Smart Card Application
- AFIS
- Health & Medical
- UIDAI
- Jeevan Pramaan
- AEBAS
- Skill Development
- NREGA
- PDS
| Sensor Characteristics | ||
| Parameters | Specification | |
| Spatial Resolution | > 50% @ 1.0 LP/mm | |
| Pixel Resolution | > 10 pixels/mm | |
| Image Margins Left & Right | >= 0.6x IRIS radius | |
| Top & Bottom | >= 0.2x IRIS radius | |
| Imaging Wavelength | 700-900 nm | |
| Pixel Depth | 8 bits/pixel | |
| Output Image | KIND1 to KIND7 with JPEG2000 Compression | |
| Capture Mode | Auto Capture with Built-in Quality Check | |
| Capture Time | < 2 sec | |
| Safety | Exempt Group per IEC 62471:2006-07 | |
| Health-Safety | RoHS Compliant | |
| ESD | Air Discharge+-8 KV, Contact Type +-4Kv | |
| Radiated Emission | FCC part15B/IEC:CISPR 22 Class B Standard | |
| Radiated Immunity | As per IEC/EN 61000-4 3:2006+A2:2010 | |
| Connectivity | USB 2.0 | |
| Operating System Supports | Windows XP, Win7, Win2008, Android, Linux, Embedded Linux | |
