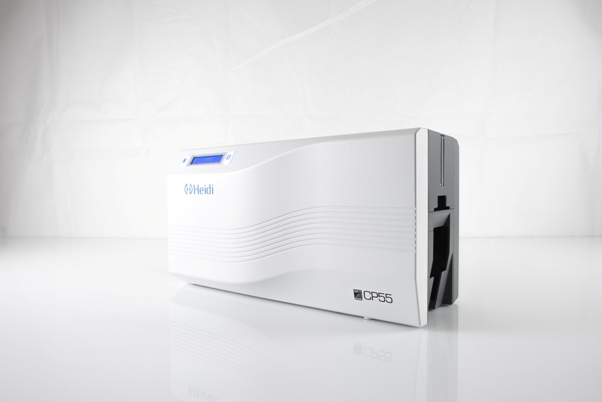

Heidi CP55-S Single-Side Card Printer
The Heidi CP55-S is a high-speed, user-friendly, and durable direct-to-card printer that offers single-sided printing. With bulk card issue capabilities, businesses can achieve a lower cost-per-card while maintaining quality.CP55-s is a versatile card printer that supports contact, contactless, and magnetic stripe encoding. With its SDK and global support, it offers a reliable and secure solution for EMV card printing. Additionally, it features a compact size and a physical lock for added security.
User-Friendly
Easy to use and maintain; plug and print. Durable yet affordable. Reliable operations and high-resolution printing are offered at a reasonable price.Durable yet affordable
Reliable operations, high-resolution printing offered at a reasonable price.Highly Scalable
An all-in-one printing solution with upgrade options, ribbons, and software.Trusted Security
Contact, contactless, and magnetic stripe encoding for high-standard digital security compliance with EMV. Equipped with physical lock.Smart Design
Compact size with a unique design, ideal for limited workspaces.Capabilities
The CP55 is a high-quality printer with 300×300 dpi, edge-to-edge printing on various cards.Operation
An all-in-one ribbon cassette and cleaning roller that incorporates an efficiently operated LED system simplifies the ribbon loading and cleaning processes, saving time and ensuring a clean print head for optimal performance.Performance
The Heidi cp55-S card printer has a built-in 64 MB memory, allowing for efficient storage and processing of printing jobs at high speeds.Personalization
Explore various options for protecting against card tampering and fraud attempts, including implementing a covert layer of security, specifically ultraviolet (UV) technology. By supporting the secure global EMV standard, this system ensures that cards are compatible and can be used seamlessly with the international payment infrastructure.Modularity
Seamlessly upgrades the basic CP55 Single-Sided printer to a Dual-Sided one with a flipper unit, magnetic stripe, smart card encoders & physical lock for trusted security.
Technical Specifications
Standard Features
| Printing Method | Direct to card dye-sublimation/resin thermal transfer |
| Accepted Standard Card Sizes/Format | ISO CR-80 (3.375˝L x 2.125˝W/85.6 mm L x 54 mm W) |
| Accepted Card Thickness | 0.38mm (15mil) ~ 1.0mm (40mil) |
| Resolution | 300 dpi (11.8 dots/mm) |
| Print Area | CR-80 (3.36˝L x 2.11˝W/85.3 mm L x 53.7 mm W) |
| CPU | AM3352 600MHz |
| Printing Speed | Color (YMCKO): 170 cards/hour Black Overlay (KO): 360 cards/hour Mono (Black): 720 cards/hour |
| Print Ribbon Options | Half YMC Full KO: 350 prints/roll Resin black with overlay panel, KO, 600 prints/roll Mono (Black, Gold, Silver): 1,200 cards/roll YMCUVO Blue: 200 prints/roll Full-color with resin black and overlay panel YMCKO, 250 prints/roll |
| Input Hopper Card Capacity | 100 cards (200 cards with cover open) |
| Output Hopper Card Capacity | 40 cards (100 cards with option backside stacker) |
| Card Cleaning | Cleaning roller with each cartridge |
| Memory | ROM: 2MB, RAM: 64MB |
| Software | GET Identity (ID Card Design & Management Software) |
| Interface | USB 2.0, Ethernet Optional |
| Display | 2 Lines(16×2) LCD & LED |
| Power | Free Voltage (110/240V AC), 50 ~ 60 Hz, 45W |
| Dimensions | 380mm(W) x 208mm(H) x 166mm(D) |
| Operating Environment | Temperature: 20 ~ 35℃, Humidity: 20 ~ 80% |
| Weight | 5.1 Kg |
| Certification | CE, CB, FCC |
| Operating System Support for Printer | Driver Windows 7/8/10, Linux, Mac |
| Warranty | 24-month standard depot warranty | 24-month print head warranty |
| Kensington Lock | Back side |
Field-Upgradable Options
| Flipper (dual side print module) | Optional |
| Magnetic Stripe Encoder | ISO7811 (Track Ⅰ, Ⅱ, Ⅲ Read/Write) HiCo/LoCo |
| Contact Smart Card Encoder | ISO/IEC 7816-1,2,3,4: IC Cards with contacts EMV Terminal Level 1 version 4.1 |
| Contactless Smart Card Encoder | ISO14443 (Type A/B) MIFARE®, MIFARE DESFire® iCLASS® EMV2 2000 Level 1 |
| Ethernet | TCP/IP 10/100 BaseT |
| Physical Lock | Top cover lock |
